euroHUSH

WALL AND CEILING PANELS

euroHUSH is suitable for all decorative and acoustic applications and provides a stylish, contemporary finish to your project while offering superb acoustic insulation and a maintenance free wall and ceiling lining solution.

Downloads

Installation Information

EUROHUSH TO WALLS

Your Title Goes Here
euroHUSH battens to walls

Panels are secured to the wall using 12mm MDF split battens, which are screw fixed to selected vertical wall battens.

Side section showing batten interlocking

euroHUSH face fixed to battens on walls

Panels are secured to the wall by screw fixing through the euroHUSH batten into the wall batten. euroHUSH batten is positioned over a Perforation and the screw head is hidden within the perforation.

Plan section showing split batten fixing

EUROHUSH TO CEILINGS

Your Title Goes Here
euroHUSH 25mm split battens to furring channel

Panels are secured by screwing 25mm split battens to the ceiling grid, and also to prefixed 12mm battens to the rear of the panel.

euroHUSH direct screw fix to grid – from below with prefixed battens

Panels are secured by screwing through prefixed battens, into the grid system.

Prefixed battens are positioned to the back face of the panels, over perforations, and the screw head is hidden within the perforation.

euroHUSH direct screw fix to grid – from above with prefixed battens

Panels are secured from above the grid by screwing down through the furring channel into prefixed battens on the back face of panels.

euroHUSH Drop-In Tile method

Panels are made to the required size to ‘drop-in’ to any existing ceiling grid system.

Plan section showing split batten fixing

Accoustic Datasheets

europanel have invested heavily in commissioning a large amount of testing at Melbourne’s RMIT University’s ‘Acoustically Isolated Reverberation Chamber’, and achieved certification data in accordance with Australian Standard ISO 354-2006.

Your Title Goes Here
euroHUSH S1

euroHUSH S1/25/GW NRC 0.70

euroHUSH S1/25/MS NRC 0.35

euroHUSH S1/25/P | NRC 0.60

euroHUSH S1/50/GW | NRC 0.70

euroHUSH S1/50/MS | NRC 0.40

euroHUSH S1/50/P | NRC 0.65

euroHUSH S1/75/GW | NRC 0.70

euroHUSH S1/90/GW | NRC 0.70

euroHUSH S4

euroHUSH S4/25/GW | NRC 0.70

euroHUSH S4/50/GW | NRC 0.65

euroHUSH S4/75/GW | NRC 0.65

euroHUSH S4/90/GW | NRC 0.60

euroHUSH S9

euroHUSH S9/25/GW | NRC 0.55

euroHUSH S9/50/GW | NRC 0.55

euroHUSH S9/75/GW | NRC 0.55

euroHUSH S9/90/GW | NRC 0.55



Design Flexibility

With euroHUSH, the options are endless. Our range of wall and ceiling panels allow you to customise your design by choosing from a range of options on patterns, finishes and applications or creating your own.

Finishes

The versatility of our euroHUSH product is that it can be manufactured in any finish, from any supplier:

Polyurethane: Select or match to any colour you can imagine

Veneer: Specify a finish from any timber veneer species

Magnetic liner: Specify a magnet receptive finish for the product

Prefinished colours: Choose any colour available from the Polytec range or any other colour range of your choosing



Accoustic Backing

To achieve the NRC performance you require in your design, euroHUSH offers two standard backing options. Refer to our acoustics pages for more information on how europanel can help you to maximise the sound absorption coefficient to suit your space. Click here to view certification datasheets for euroHush.

Substrate

euroHUSH standard panels are fabricated from high quality E1 MDF (black) and E0 MDF (standard). These panels are hard wearing and provide a resilient alternative to standard wall lining products making euroHush ideal for numerous high demand environments. Choose from standard MDF or plywood, or make an impact with our unique black MDF option.



Fixing

Wall panels: euroHUSH wall panelling is generally fixed into position using conceal fixed 12mm split batten system as a standard.

Ceiling panels can be held in position by two methods:

  • Existing grid: panels are dropped into position by utilising either a new or existing ‘ceiling tile grid’.
  • Steel support grid: panels can be fixed into position from above, using a furring channel support grid that is either installed by us, or onsite partition contractors.

Design Flexibility

With euroHUSH, the options are endless. Our range of wall and ceiling panels allow you to customise your design by choosing from a range of options on patterns, finishes and applications or creating your own.

Finishes

Specify a finish from our extensive range of:

  • Prefinished colours: Choose any colour from the Polytec or any other range
  • Polyurethane: Select or match to any colour you can imagine
  • Veneer: Specify a finish from any timber veneer species
  • Magnetic liner: Specify a magnet receptive finish

Accoustic Backing

To achieve the NRC performance you require in your design, euroHUSH offers two standard backing options. Refer to our acoustics pages for more information on how europanel can help you to maximise the sound absorption coefficient to suit your space. Click here to view certification datasheets for euroHush.

Substrate

euroHUSH standard panels are fabricated from high quality E1 MDF (black) and E0 MDF (standard). These panels are hard wearing and provide a resilient alternative to standard wall lining products making euroHush ideal for numerous high demand environments. Choose from standard MDF or plywood, or make an impact with our unique black MDF option..



Fixing

Wall panels: euroHUSH wall panelling is generally fixed into position using conceal fixed 12mm split batten system as a standard.

Ceiling panels can be held in position by two methods:

  • Existing grid: panels are dropped into position by utilising either a new or existing ‘ceiling tile grid’.
  • Steel support grid: panels can be fixed into position from above, using a furring channel support grid that is either installed by us, or onsite partition contractors.

Standard Panel Designs

Choose from a range of standard slot patterns or create your own, whether it’s curved lines, circles, crosses or even a logo. Click thumbnails below to download a specification PDF.







How to specify euroHUSH

EXAMPLE SPECIFICATION: EH–S2/10–S–PO–BLUE

Product euroHUSH EH
Design Standard Custom SHCH State number
State custom number

Slot width

8, 10, 12mm

/#

Substrate

Standard MDF
Black MDF
Plywood

S
B
P
Finish

Prefinished
Polyurethane
Veneer
Magnetic

PR
Other

Species/colour

?

State species/colour

Be inspired by euroHUSH

Westmead Hospital Redevelopment

Westmead Hospital Redevelopment

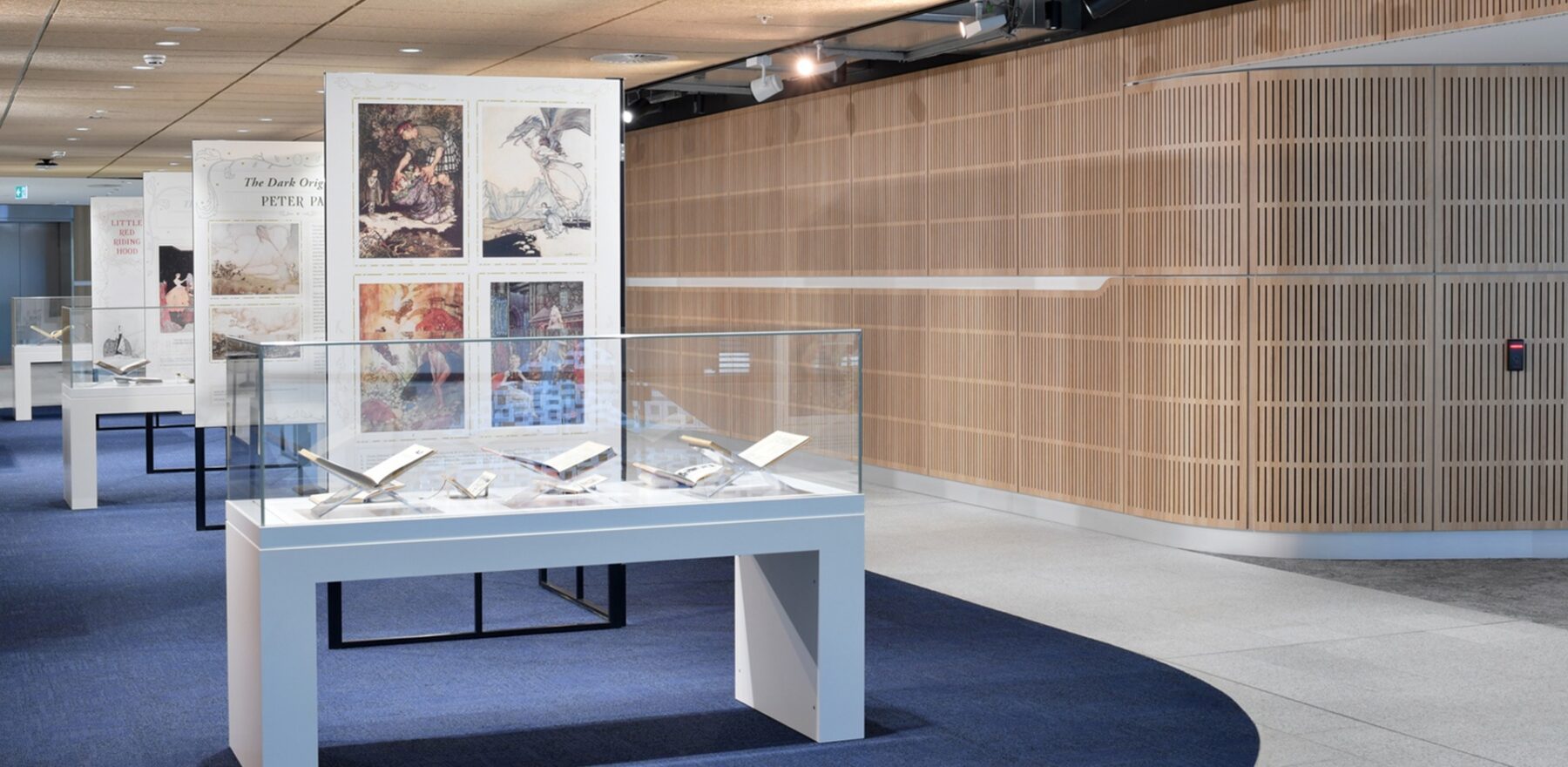

UTS Central

UTS Central

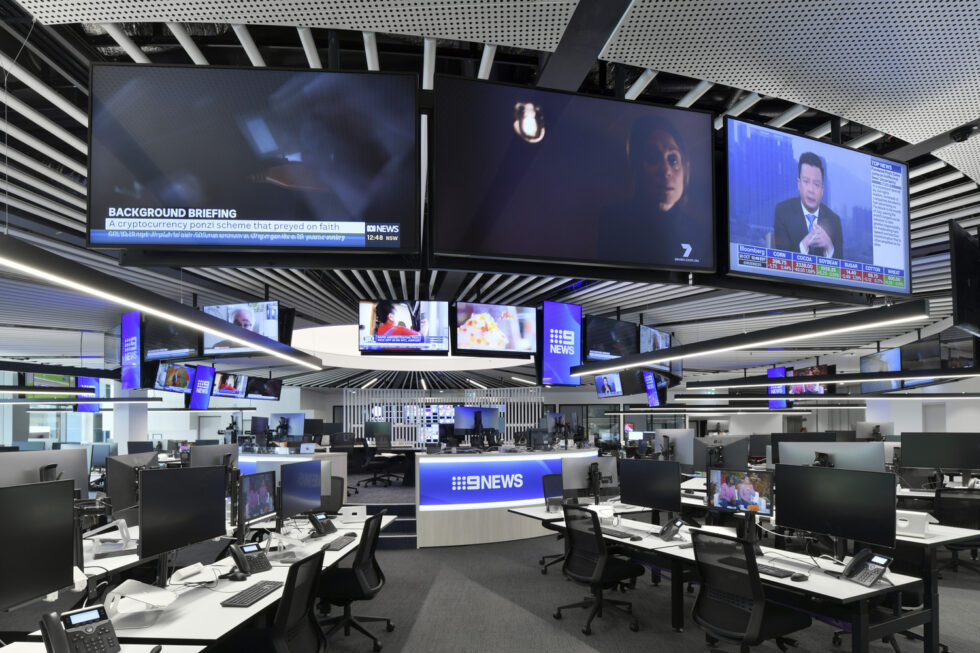

Nine

Nine

Good acoustic design doesn’t mean
compromising visual aesthetics
